wood plastic composite profile production line from China manufacturer

wood plastic composite profile production line

Price:	30000.0~50000.0 USD
Payment Terms:	T/T,L/C,WU
Place of Origin:	Shandong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: JBDMS-2

Production Capacity: 50 sets per year

Delivery Date: 40 working days

Use: Others

Brand Name: JBD

Capacity: 150-200kg/h

place of origin: Shandong, China

Input material: PE/PP/PVC+wood powder+addit...

length of production line: 18m

Total power: 90kw

Air pressure: 0.6Mpa

Means of Transport: Ocean,Land

Packing: depends on the customers ch...

Plastic Type: Others

Shaft Design: Double

Power: 90kw

condition: new

Extruder type: SJSZ65/132

line speed: 0.5-3m/min

Weight(approx): 13 ton

Consume power: approx 63kw

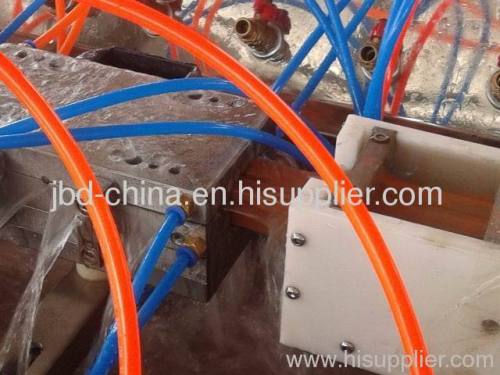

PE/PP wood plastic composite profile production line
1.Line speed:0.3-3m/min
2.Machine Length:18mm
3.Motor power:37kw
4.Air pressure:0.6Mpa

Material:Wood powder+PP/PE granules

Application of product

Storage industry ,for packing case and wood-polymer tray,ect.
Automobile industry,such as door material,carriage material and ceiling material,ect.
Agriculture,such as vegetable frame and trough,ect.
Transportation,such as door material,carriage material and celling material,etc.
Agriculture,such as architecture mould,movable rooms and materials for door,window,stair handrail,decorative materials and floor materials,etc.
Urban scenery,such as pavilion,chair,flowwer box and plank floor,etc.

Extruder model	SJZ51/105	SJZ65/132		SJZ80/156	SJZ92/188
Main motor power(kw)	22	37		55	110
Production width(mm)	Max240	Max240	Max300	Max600	Max900	Max1200
Vacuum pump(kw)	2×5.5	4×5.5	4×5.5	4×5.5	1×7.5	1×7.5
Vacuum pump(kw)	2×5.5	4×5.5	4×5.5	4×5.5	2×11	2×11
Water pump(kw)	1.5	4	4	7.5	7.5	7.5
Hauling speed(m/min)	0-5	0-5	0-5	0-3	0-2.5	0-2.5
Auxiliary power(kw)	22	35	35	44	52	62
Output (kg/h)	70	120	120	180	400	400
