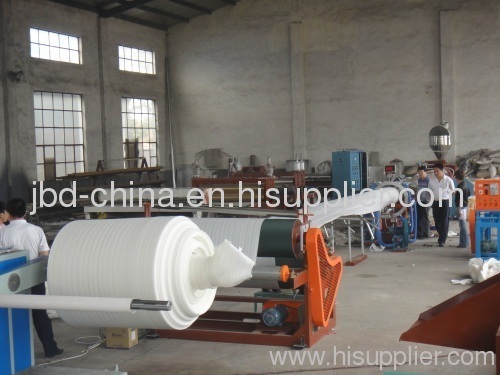

EPE foam sheet extrusion line from China manufacturer

Price:	50000.0~160000.0 USD
Payment Terms:	T/T,L/C,WU
Place of Origin:	Shandong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: JBD-EPE105

Production Capacity: 60 sets per year

Delivery Date: 40 working days

Power: 100kw

Product width: 1000-1500mm

Means of Transport: Ocean

Packing: EPE film or wooden case

Brand Name: JBD

Capacity: 50-100kg/h

Thickness: 0.5-5mm

1.Model:JBD-EPE105
2.Screw diameter:105mm
3.foam ratio:20-40
4.Thickness:0.5-5mm

EPE foam sheet is the new flexbile packaging material which features fine flexibility anti impacts rtc, also with the performance of reducing pressure and quakeproof .It is the new popular green packing materials widely applied to many kind of product package such as home appliance computer electronic instrument bicycle furniture shone glass ceramics etc

This kind of EPE foam sheet extrusion line features science design reasonable structure ascanced easy to operate running stable safe saving energry quality reliable etc it can produc all kinds of the foam sheet continually.

Technique datas

model	unit	JBD-150/55	JBD-120/55	JBD-105/55	JBD-90/55	JBD-70/55	JBD-65/55
Production capacity	kg/h	200-330	100-150	70-120	50-90	20-35	15-25
Foaming magnification	times	30-43	30-43	30-43	30-43	30-43	30-43
Traction speed	m/min	20-80	20-80	20-80	20-80	20-80	20-80
Range	Mm	1000-1600	1000-1500	1000-1300	1000-1200	800-1000	800-1000
Thickness	Mm	1.5-1.2	0.5-8	0.5-6	0.5-4.5	0.5-3	0.5-3
Total power	Kw	200	150	110	90	55	45
Power	v	380	380	380	380	380	380
Center High	Mm	1100	1100	1000	1000	1000	1000
Cooling water	T/H	25	12	8	6	4	4
Installation size	Mm	2600x4000x2700	240030002500	2200030002500	2200030002500	1900020002500	1900026002500
Compressed air	Mpa/min	0.5-1	0.5-0.09	0.5-0.6	0.5-0.6	0.5-0.3	0.5-0.3
whole weight	t	18	12	11	10	8	8
