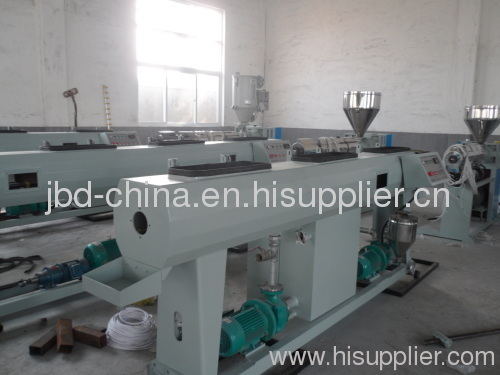

PERT floor heating pipe prodcution line from China manufacturer

Price:	20000.0~26000.0 USD
Payment Terms:	T/T,L/C,WU
Place of Origin:	Shandong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: JBD-PERTG32

Production Capacity: 120 sets per year

Delivery Date: 20 working days

Power: 50kw

Means of Transport: Ocean

Packing: EPE film or wooden cases

Brand Name: JBD

Capacity: 30-50kg/h

1.Length of line:22m
2.Material of screw:38CrMoAlA
3.Material of barrel:38CrMoAlA
4.Motor power:22kw

PERT Floor heating pipe production line is mainly used in the manufacture of the PERT pipes with various tube diameters and wall thickness such as the agricultural and constructional plumbing, water supply and drain, and sewege and grainage system.

Process flow

Raw material →vacuum feeding →material dryness →single screw extruder →spiral mold →low temperature cooling calibrator, high level water tank →water cooler→ dip-in vacuum calibration tank→ dip-in cooling water tank→ dip-in cooling water tank→ spray-code printer→ belt haul-off→ double winder→ finished product inspecting & packing

Technique datas

Model	Screw diameter	Production line speed	Main motor power(kw)	Total power(kw)	Line length(m)
PERT-32 (economical)	50mm	6m/min	22	50	22
PERT-32 (popular)	65mm	10m/min	37	60	24
PERT-32 (high-speed)	75mm	20m/min	75	120	50
