Wood plastic composite door board extrusion line from China manufacturer

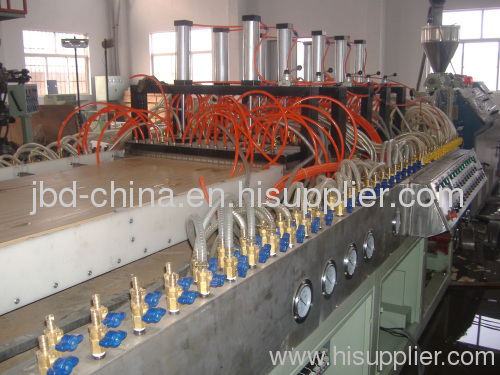

Wood plastic composite door board extrusion line

Price:	110000.0~160000.0 USD
Payment Terms:	T/T,L/C,WU
Place of Origin:	Shandong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: JBD-MSMB92

Production Capacity: 50 sets per year

Delivery Date: 50 working days

Use: Others

Brand Name: JBD

Capacity: 450kg/h

thickness of board: 25-60mm

Means of Transport: Ocean

Packing: Stretch film or wooden case

Plastic Type: PVC

Shaft Design: Double

Power: 220kw

width of board: 850-1200mm

1.Screw design:Conical twin screw
2.Screw diameter:92mm
3.L/D:22:1
4.Capacity:450kg/H
5.Total power:220kw

Wood plastic composite door board extrusion line production process

Host machine extrusion →Vacuum calibrating →Haul off →Cutting →collecting →Convey →twin color printing →drying →primer coating →leveling→ painting → leveling →solidify forming →Convey→

Checking up →Packing →Finishing

Wood plastic composite door board PRODUCTION line technique datas

Main Technical Specification
Model		SJSZ80/156	SJSZ92/188
Screw dia.	mm	Φ80/156	Φ92/188
Screw quantity	Piece	2	2
Screw speed	r/min	1-38	1-32.9
Main extruder power	KW	55	110
Heating power(approx)	KW	36	45
Output(approx)	Kg/h	100-400	400-500
Main Technical Specification of
Model		JBD600	JBD900
Max.product width	mm	600	900
Draw-off height	mm	150	150
Draw-off force	KN	30	40
Draw-off speed	m/s	0-3	0-2.5
Total power of auxiliary machine	KW	38	55
Cooling water consumption	m³/h	9	12
Compressed air pressure	Mpa	0.6	0.6
