PVC wood plastic composite door board production line from China manufacturer

PVC wood plastic composite door board production line

Price:	80000.0~160000.0 USD
Payment Terms:	T/T,L/C,WU
Place of Origin:	Shandong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: JBD-MSMB92

Production Capacity: 60 sets per year

Delivery Date: 50 working days

Brand Name: JBD

Capacity: 450kg/h

thickness of board: 15-40mm

Means of Transport: Ocean

Packing: EPE film or wooden case

Plastic Type: PVC

Power: 300kw

width of board: 600-1200mm

1.Model:JBD-MSMB92
2.Material:PVC+wood powder+additives
3.Total power:300kw
4.Weight:10 ton

1.PVC wood plastic composite door board production line is the manufacture facilities of PVC plastic profile materials, including window and door series profile, plate, sheet, tiny bubble profile and tiny bubble ornament plate.

The big shape PVC wood plastic composite door board extrusion line is developed by Our corporation introduces the advanced technology from abroad, forming a complete system with twin conical screw extruder, it feature high automation degree, smooth work performance, big yield and high efficiency.

2.PVC wood plastic composite door board making line uses SJZ80/156 or SJZ92/188 special used conical twin screw extruder

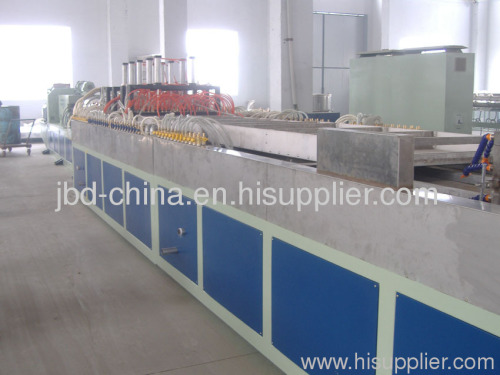

3.The down stream equipment includes vacuum calibration and cooling unit, haul-off unit, cutting machine and stacker

4.The calibration unit is equipped with large forced cooling system so that it can provide perfect calibration effect

5.The haul-off unit is caterpillar style. The lower one is fixed and the upper one can be adjusted according to the plate size

6.The cutting machine is able to provide accurate automatic cutting

7.The stackers is attached with a material cart and rubber protection layer to prevent it from damage, and easy operation

8.Can choose laminating machine to make the final board with door effect

Parameter

Item	Parameter
Suitable Resin	PVC Powder + Wood Powder+ chemical additives
Max. OutPut	600kg/h
Max. Thickness of Door	45mm
Width of Door	1200mm
Central Height	1200mm
Power Supply For Motor	Three-Phase 380V±10% 50HZ
Powder Supply For Heater & Controlling System	phase 220V±10%50HZ
Cooling Water	≤20°C,≥0.3Mpa –1.25m3/min
Compressed Air	more than 0.53Mpa, -0.5 m3/min
