PC hollow grid sheet production line from China manufacturer

Price:	130000.0~160000.0 USD
Payment Terms:	T/T,WU
Place of Origin:	Shandong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: JBD-PC2100

Production Capacity: 60 sets per year

Delivery Date: 50 working days

Power: 220KW

Model: SJ150/35

Board thickness: 2-16mm

Means of Transport: Ocean

Packing: wooden cases

Brand Name: JBD

Capacity: 300-500KG/H

Board width: 800-2100mm

1.Screw diameter:150mm
2.Model:SJ150/35
3.Total power:200kw
4.Main motor power:110kw

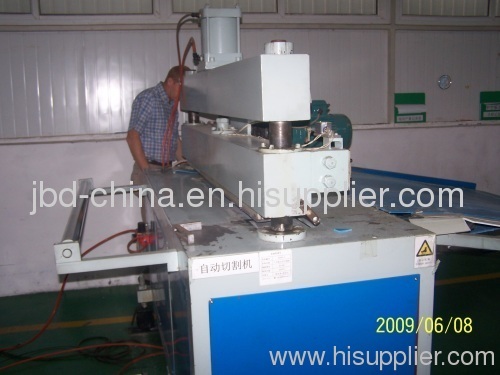

PC hollow grid sheet production line is the special equipment for extruding PC hollow grid board directly. The grid board having the strong point of smooth and cleansurface, good outlook and pressure resistance. It can be widely used in construction, package and adornment industries.
PP/PE/PC hollow grid sheet extrusion line can produce LDPE hollow grid board as well as agricultural and construction transparency warm keeping PP, PE, PC hollow grid board through changing the molding die.

Technique datas

Main Machine	SJ-150*35	SJ-120*35
Molding block(pcs)	2	2
Drawing speed(m/min)	0.5-6	0.4-4
Cutting speed(m/min)	5-10	5-10
Production Capacity(kg/h)	450	350
Width of board(mm)	800-2100
Thickness of board(mm)	2-16
