ABS sheet production line from China manufacturer - QINGDAO JBD MACHINERY CO., LTD

Price:	1.0~240000.0 USD
Payment Terms:	T/T,WU
Place of Origin:	Shandong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: JBD-FHB120

Production Capacity: 30 sets per year

Delivery Date: 65 working days

Use: Others

Brand Name: JBD

Capacity: 200-800kg/h

Application material: ABS/PMMA/PE/PP/PS/HIPS

Products thickness: 2-8mm

Means of Transport: Ocean

Packing: wooden cases

Plastic Type: ABS

Shaft Design: Single

Power: 22-265kw

Screw design: single screw

Products width: ≤3000mm

Line speed: 6m/min

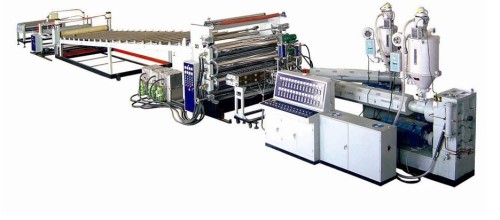

PE/PP/PS/HIPS/ABS single and multi-layer sheet production line
1.Screw design:single screw
2.Material:PPPE/ABS/PMMA
3.Product thickness:2-8mm

PE/PP/PS/HIPS/ABS single and multi-layer sheet production line is capable of continuously producing mono-layer or multi-layer PP/PE/ABS/PMMA/PC/PS/HIPS sheet with the width less than 3000mm and thickness of 02-8mm.

The products are widely used in the fields of stationery,one-off water cups,lundh boxes,jelly cups,beverage cups,food container,etc.thermoforming fields.

Extruder:

Appropriate single-screw extruder (exhaust or not) should be chosen on the basis of different materials. Specially designed screw and advanced temperature controlling system ensure the good plasticization, high output and stable extruding.

Screen changer and mould:

The quick screen changer of hydraulic system ensures the short course of screen changing without material-leakage. Reasonable structure of mould should be chosen in terms of material, whereas moulds of clothes-rack mode are widely accepted to regulate flow-distribution and guarantee even thickness of sheets.

Three-roller calendaring machine:

Inclined and vertical three-roller calendaring machine should be chosen according to the thickness of the sheets. Temperature controller operates separately and gap among the three rollers can be adjusted freely, and the central roller has special design of regulating angle. Both ensure the excellent calendaring effect and even thickness of sheets.

Bracket of cooling roller:

Equipped with corresponding guide roller, the cooling effect is better. In addition, the edge-shearing device equipped can guarantee fixed width of sheets and quality of edge.

Landscape orientation cutting machine:

It is of length-fixed cutting with cutting precision less than 2mm and adopts alloy blade or rigid alloy saw bit to ensure the good cutting effect and constantly stable performance.

The winder:

It is of friction winder and other forms as well can be supplied according to customers' requirements

Model	Extruder	Width of product (mm)	Linear velocity (m/min)	Max output(kg/h)
JBD700A	SJ75	700-1500	1-6	About 100
JBD700B	SJ90	700-1500	2-12	About 200
JBD2100A	SJ120	700-2100	2-20	About 300
JBD2100B	SJ150	700-2100	2-20	About 450
