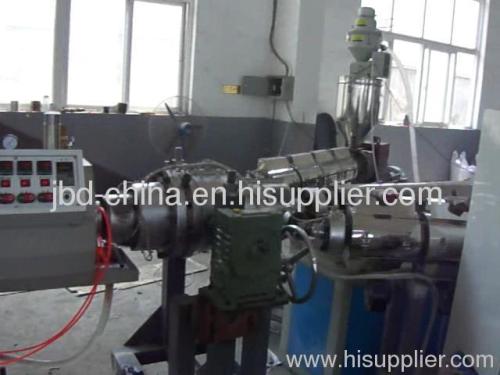

PP super mute pipe production line from China manufacturer

Price:	45000.0~60000.0 USD
Payment Terms:	T/T,WU
Place of Origin:	Shandong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: JBD-PPG65

Production Capacity: 60 sets per year

Delivery Date: 40 workings days

Power: 120kw

Extruder: SJ65/30

Means of Transport: Ocean

Packing: wooden cases

Brand Name: JBD

Capacity: 180kg/h

Pipe diameter: 20-63mm

1.Screw design:single screw
2.pipe diameter:20-63mm
3.L/D:30:1
4.Model:JBD-PPG65

Introduction
1.hard outer cortex, has a good impact resistance, can play the middle layer of protection.
2.the middle layer of soft viscoelastic using a special inorganic materials, with excellent sound insulation, sound-absorbing and buffer the vibration function, reduce the frequency of the noise 2000-4000HZ significant role.
3.the inner layer has helical structure, can reduce the water impact to the pipe wall, so that can lower noise.

Technique datas

Item	JBD-PPG65	JBD-PPG90	JBD-PPG120	JBD-PPG150
Model of Extruder	SJ-65×33 SJ-25X25	SJ-90×33 SJ-30X25	SJ-120×33 SJ-30X25	SJ-150×33 SJ-30X25
Max. Pipe Diameter(mm)	Φ63	Φ315	Φ500	Φ630
Capacity(kg/h)	180	400	700	900
Hauling Speed(m/min)	1-6	1-5	0.5-4	0.5-4
Calibrating Way	Vacuum Calibrating	Vacuum Calibrating	Vacuum Calibrating	Vacuum Calibrating
Cooling Way	Water Spraying	Water Spraying	Water Spraying	Water Spraying
Cooling Length(mm)	6000	6000	6000	12000
