PP soundproof pipe production line
Price: |
45000.0~60000.0 USD |
Payment Terms: |
T/T,WU |
Place of Origin: |
Shandong, China (Mainland) |
Product Detail
Model No.:
JBD-PPG65
Production Capacity:
60 sets per year
Delivery Date:
40 workings days
Power:
120kw
Extruder:
SJ65/30
Means of Transport:
Ocean
Packing:
wooden cases
Brand Name:
JBD
Capacity:
180kg/h
Pipe diameter:
20-63mm
1.Screw design:single screw
2.pipe diameter:20-63mm
3.L/D:30:1
4.Line speed:1-6m/min

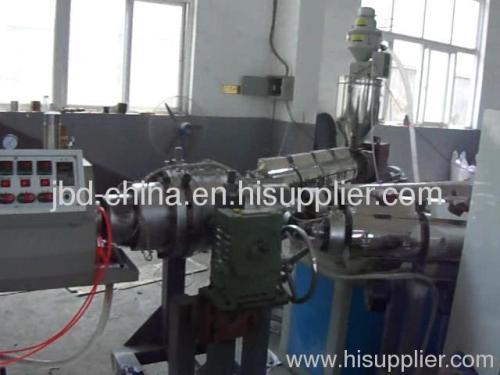

PP soundproof pipe production line equip with professional single screw extruder, with having high speed extrusion, high effective plasticization and others. Adopt with separation style mix-temper screw, three sets co-extrusion mould head of special design, channel with reason, insider and outside of pipe is very smooth, inner-stress is very small, production range is 20mm110mm, production speed reaches highly to 20m/min.
Technique datas
Item | JBD-PPG65 | JBD-PPG90 | JBD-PPG120 | JBD-PPG150 |
Model of Extruder | SJ-65×33 SJ-25X25 | SJ-90×33 SJ-30X25 | SJ-120×33 SJ-30X25 | SJ-150×33 SJ-30X25 |
Max. Pipe Diameter(mm) | Φ63 | Φ315 | Φ500 | Φ630 |
Capacity(kg/h) | 180 | 400 | 700 | 900 |
Hauling Speed(m/min) | 1-6 | 1-5 | 0.5-4 | 0.5-4 |
Calibrating Way | Vacuum Calibrating | Vacuum Calibrating | Vacuum Calibrating | Vacuum Calibrating |
Cooling Way | Water Spraying | Water Spraying | Water Spraying | Water Spraying |
Cooling Length(mm) | 6000 | 6000 | 6000 | 12000 |
