COD cable protection sleeve pipe production line from China manufacturer

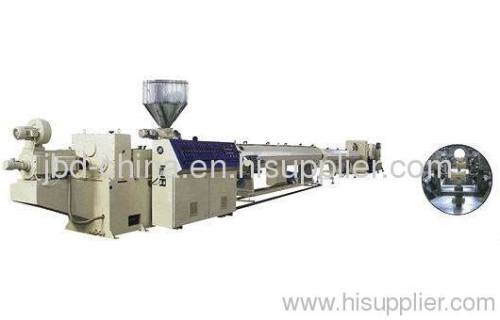

COD cable protection sleeve pipe production line

Price:	50000.0~80000.0 USD
Payment Terms:	T/T,WU
Place of Origin:	Shandong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: JBD-COD90

Production Capacity: 80 sets per year

Delivery Date: 40 workings days

Power: 130kw

Extruder model: SJ90/30

Means of Transport: Ocean

Packing: wooden cases

Brand Name: JBD

Capacity: 200kg/h

Pipe range: 100-125mm

1.Screw design:single screw
2.Screw diameter:90mm
3.Extruder model:SJ90/30
4.L/D:30:1

COD cable protection sleeve pipe production line is developed by our company in recent years,and we are the first one to launch of new products in China, with high yield, simple process, high automation, easy operation, to fill the gap , the leading domestic level.

COD is the English abbreviation of Corrugated Optic Duct .This is summed up in the past all kinds of cables, cable ducts of the pros and cons, based on new ideas in development from a new generation of high-performance fiber optic cable conduit. It uses a very low coefficient of friction of modified HDPE as the main raw material, the structure to a very low coefficient of friction ridge wall pipe for the child controls to high pressure, easy to bend the corrugated pipe for the mother tube, formed by the extruder.

It can withstand high Voltage, flexible with distinction, easy construction as the main features of the physical performance, long service life, easy construction and so many other products can not match its advantage.

Main Technical Parameters of COD pipe line:

Model	Extruder type	Pipe range(mm)	Output(kg/h)	Total Power(kw)
SJ90×30	SJ90×30	Φ100-φ125 φ150φ175φ200	200	130
SJ65×30	SJ65×30	Φ40-φ50 Φ65φ80φ100	90	65
