Corrugated optic duct pipe making machine from China manufacturer

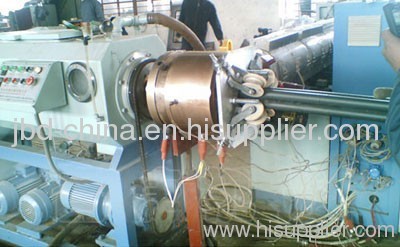

Corrugated optic duct pipe making machine

Price:	50000.0~80000.0 USD
Payment Terms:	T/T,WU
Place of Origin:	Shandong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: JBD-COD90

Production Capacity: 80 sets per year

Delivery Date: 40 workings days

Power: 130kw

Extruder model: SJ90/30

Means of Transport: Ocean

Packing: wooden cases

Brand Name: JBD

Capacity: 200kg/h

Pipe range: 100-125mm

1.L/D:30:1
2.Pipe range:100-125mm
3.Capacity:200kg/h
4.Total power:130kw

Introduction

COD(Corrugated Optic Duct) is composed of inner pipes,outer helix corrugated pipe as integrated.

All inner pipes and outer pipes are made of HDPE materials, with high elasticity and better flexibility.Widely used in optical cable and cable protection pipe.

Specifications are made according to the custermers' requirements.

Corrugated optic duct pipe making machine main material is PVC,PP,PE producing small-diameter single-wall corrugated pipe.

Advantage

Compressive COD product is special spiral shape of traditional PE, it enhances the straight and the compressive capacity, its compressive ability is traditional pipe several times and improve the effectiveness and elasticity, earthquakes, subsidence, also can assure safety. Resistance to chemicals, durability strong acid, alkali skills and water resistance is more superior in the sea and wetland laid, can be corrosion resistance, is half permanent pipe line

Technique datas

Model	Extruder type	Pipe range(mm)	Output(kg/h)	Total Power(kw)
SJ90×30	SJ90×30	Φ100-φ125 φ150φ175φ200	200	130
SJ65×30-	SJ65×30	Φ40-φ50 Φ65φ80φ100	90	65
