PET Mono or Multi layer sheet extrusion line from China manufacturer

PET Mono or Multi layer sheet extrusion line

Price:	150000.0~200000.0 USD
Payment Terms:	T/T,L/C,WU
Place of Origin:	Shandong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: JBD-PET1200

Packing: Stretch film or wooden case

Brand Name: JBD

Capacity: 450kg/h

sheet width: 600-1200mm

Production Capacity: 60 sets per year

Delivery Date: 50 working days

Power: 132kw

sheet thickness: 0.2-3mm

1.Sheet width: 600-1200mm
2.Line speed:0.5-5m/min
3.Sheet thickness:0.2-3mm
4.Cooling water:40m³/min
5.Compressured air:0.4-0.6Mpa

PET Mono or Multi layer sheet production line has such characteristics as high intensity, good temperature resistance, good rot proof, etc. it can be produced with additives to different requirement such as improving intensity, improving toughness, improving rigidity, flame retardant, embossing, frosting, etc.

Applications: such as packing, printing, stationery, art works, etc. main product: gift/ad/file bag, lamp cover, food packing, etc.

Production scope: thickness 0.2-2mm width 600-1500mm

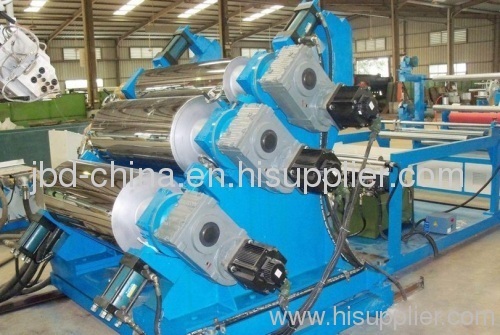

PET Mono or Multi layer sheet extrusion line is consists of Extruder, Screen exchanger, Mould, Three-roller calender, Temperature controller,Cooling carrier frame, Haul-off,Cutter/Winder.

Optional device: Hydraulic measuring pump,laminator.

Technology parameter

Model	Extruder	Widthof product (mm)	Linearvelocity (m/min)	Maxoutput(kg/h)
				Three-rollercalender
JBD700A	SJ75	700-1500	1-6	About100
JBD700B	SJ90	700-1500	2-12	About200
JBD2100A	SJ120	700-2100	2-20	About300
JBD2100B	SJ150	700-2100	2-20	About450
