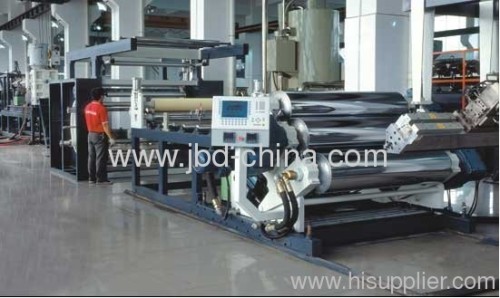

PET sheet line
Price: |
150000.0~200000.0 USD |
Payment Terms: |
T/T,L/C,WU |
Place of Origin: |
Shandong, China (Mainland) |
Product Detail
Model No.:
JBD-PET1200
Packing:
EPE film or wooden case
Brand Name:
JBD
Capacity:
450kg/h
sheet width:
600-1200mm
Production Capacity:
60 sets per year
Delivery Date:
50 working days
Power:
132kw
sheet thickness:
0.2-3mm
1.Max output: 450kg/h
2.L/D:33:1
3.Material:PET flakes
4.Sheet thickness:0.2-3mm
The PET sheet production line manufactured by our company has following technical features:adopting twin screw,high speed meshing type,machine barrel using unique block structure problem that the whole screw and barrel have to be discarded only for partial damage.It decreases repairing cost greatly.The main engine could conbine one,two or several sections vacumm exhausting structure which has strong exhausting capability,which allow fuse-elements pump,stably and well as high precision of frame head mould.PET reclaimed materials can be directly 100% recycled,no crystal drying system is needed,several difficulties that could not be overcome by using mono screw PET were totally solved in this solution.It's pf high best chioce for manufacturers of PET sheet products.The PET sheet extrusion line consists of extruder hydraulic draping,fuss-element pump,mould head and control devices including roller trio plating machine and traction engine etc.All control process are realized through a touch screen panel.
Main technical parameters:
sheet width | 600-2000mm |
sheet thickness | 0.2-2mm |
Max. extrusion capacity | 30-450kg/h |
Production line speed | 15m/min |
Flow of
PET sheet making line
