PP/PE/PVC/PC/ABS profile production line
Price: |
30000.0~50000.0 USD |
Payment Terms: |
T/T,L/C,WU |
Place of Origin: |
Shandong, China (Mainland) |
Product Detail
Model No.:
JBDXC-1
Production Capacity:
120 sets per year
Delivery Date:
30 working days
Use:
Others
Brand Name:
JBD
Capacity:
60-100kg/h
place of origin:
Shandong, China
Input material:
PVC/PE/PP/ABS+additives
length of production line:
22m
Total power:
31.6kw
Air pressure:
0.6Mpa
Means of Transport:
Ocean,Land
Packing:
depends on the customers ch...
Plastic Type:
PVC
Shaft Design:
Double
Power:
31.6kw
condition:
new
Extruder type:
SJSZ55/110
line speed:
0.5-3m/min
Weight(approx):
10ton
Consume power:
approx 20kw
Material:PVC/PP/PE/PC/ABS+additives
Line speed:0.5-3m/min
Saves power by 30% - 40%
Work temperrature:0-40°C
Max ouput:100kg/h

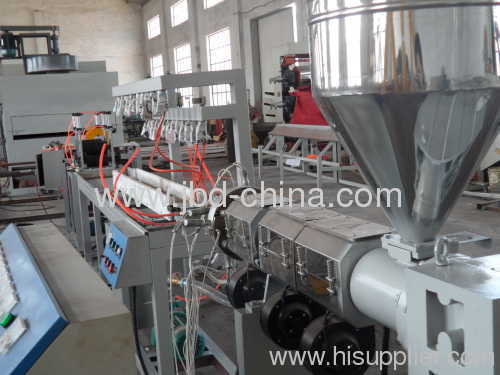

By adopting the foreign and domestic advanced technology, we successfully developed the
PP,PE,PVC,PC ABS small profile production extrusion line extruder. This line consists of
Double Screw Extruder ,Vacuum Calibration Table ,Haul-off Unit, Cutter and Stacker ,the producing line features of good Plasticization, high output capacity, low power consumption and etc. The main
extruder speed controlled by imported AC inverter, and temperature control by Japanese RKC or FUJI temperature meter, vacuum pump and traction gear reducer of the down stream equipment are all good quality products, and also easy maintenance.
Parameters
Model | JBD-YF50 | JBD-YF108 | JBD-YF180 | JBD-YF240 | JBD-YF300 |
Max. Width of products(mm) | 50 | 108 | 180 | 240 | 300 |
| SJSZ45/100 | SJSZ45/100 | SJSZ55/110 | SJSZ55/110 | SJSZ65/132 |
Total power(kw) | 18 | 26 | 31.6 | 31.6 | 37.1 |
Cooing water(m³/h) | 5 | 5 | 7 | 7 | 8 |
Compressed air(m³/min) | 0.5 | 0.6 | 0.6 | 0.6 | 0.6 |
