PP/PE/PVC/PC/ABS profile making machine from China manufacturer

Price:	30000.0~50000.0 USD
Payment Terms:	T/T,L/C,WU
Place of Origin:	Shandong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: JBDXC-2

Production Capacity: 120 sets per year

Delivery Date: 30 working days

Power: 31.6kw

Means of Transport: Ocean,Land

Packing: depends on the customers ch...

Brand Name: JBD

Capacity: 60-100kg/h

Material:PC/ABS+additives
Line speed:0.5-3m/min
Saves power by 30% - 40%
Work temperrature:0-40°C
Max ouput:100kg/h

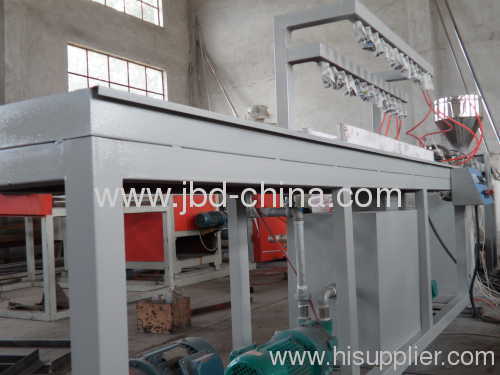

By adopting the foreign and domestic advanced technology, we successfully developed the PP/PE/PVC/PC/ABS profile making machine . This line consists of Double Screw Extruder ,Vacuum Calibration Table ,Haul-off Unit, Cutter and Stacker ,the producing line features of good Plasticization, high output capacity, low power consumption and etc. The main extruder speed controlled by imported AC inverter, and temperature control by Japanese RKC or FUJI temperature meter, vacuum pump and traction gear reducer of the down stream equipment are all good quality products, and also easy maintenance.

Parameters

Model	JBD-YF50	JBD-YF108	JBD-YF180	JBD-YF240	JBD-YF300
Max. Width of products(mm)	50	108	180	240	300
Extruder Model	SJSZ45/100	SJSZ45/100	SJSZ55/110	SJSZ55/110	SJSZ65/132
Total power(kw)	18	26	31.6	31.6	37.1
Cooing water(m³/h)	5	5	7	7	8
Compressed air(m³/min)	0.5	0.6	0.6	0.6	0.6
