HDPE hollow wall winding pipe production line

Price: 150000.0~200000.0 USD
Payment Terms: T/T,L/C,WU
Special Groups: Plastic pipe production line (14)
Place of Origin: Shandong, China (Mainland)
inquire
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: JBD-CRG2000
Production Capacity: 60 sets per year
Delivery Date: 60 working days
Power: 380kw
Forming speed: 0.5-5m/min
Pipe diameter: 1500-2000mm
Means of Transport: Ocean
Packing: Stretch film or wooden case...
Brand Name: JBD
Capacity: 650kg/h
Dimension: 30*20*7m

1.Screw design:single screw
2.Screw diameter:90mm and 65mm
3.L/D:30:1
4.Forming speed:0.5-5m/min
5.Total power:500kw

Product Introduction:
HDPE large diameter hollow wall winding pipe production line is mainly used to produce HDPE winding pipes. Adopting international advanced technology, which blends the national blank. Pipes produced are featured by light meter weight, high hardness, low cost, high efficiency as well as convenience small expense in construction, energy saving and no-leakage, etc.

HDPE large diameter hollow wall winding pipe extrusion line
is unique in technics and design, stable in performance and it can be used to produce double repeated wall spiral pipes by changing the moulds, so one machine with two usages comes true.
1. leading technology, unique technical design.
2. adopting high-efficiency single screw extruder, optimized screw originated from Germany, which ensure the high-speed and excellent-quality extrusion.
3. Using compound machines, double machines realize united loading .Molding by spiral rotation and high-efficiency technology which ensure the high quality of the pipes.
4. Introducing leading PLC controlling system, convenient operation and reliable stability.
5. Special pipe pieces connection.

Main Technical Data ofHDPE large diameter hollow wall winding pipe making line
Model
JBD-CRG800
JBD-CRG1200
JBD-CRG1500
JBD-CRG2200
Extruder Model
SJ90×30,SJ65×30
SJ90×30,J65×30
SJ90×30,SJ90×30
SJ120×30,SJ65×30
Output(kg/h)
260
500
600
700
Pipe range(mm)
Φ200-Φ800
Φ400-Φ1200
Φ800-Φ1500
Φ1500-Φ2200
Production speed(rpm)
2-16
1-12
1-6
0.5-5
Set weight(T)
150
250
320
480

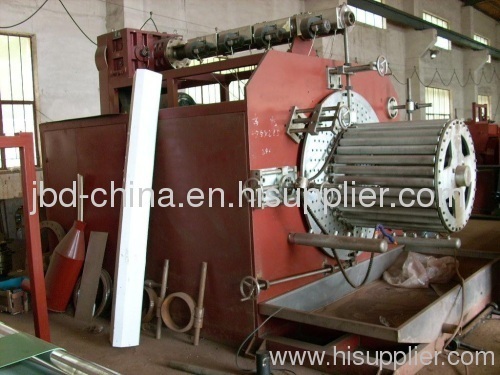

Photos of Large diameter HDPE large diameter hollow wall winding pipe
