HDPE hollow wall winding pipe extrusion machine from China manufacturer

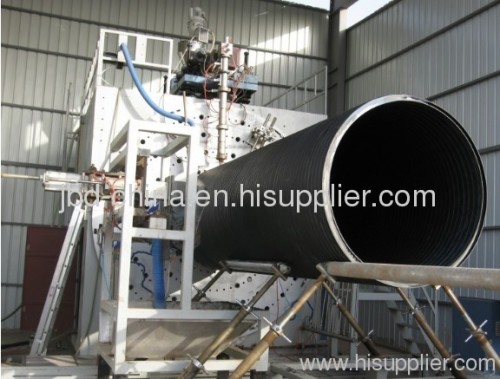

HDPE hollow wall winding pipe extrusion machine

Price:	1.0~200000.0 USD
Payment Terms:	T/T,L/C,WU
Place of Origin:	Shandong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: JBD-CRG1200

Production Capacity: 40 sets per year

Delivery Date: 50 working days

Use: Others

Brand Name: JBD

Capacity: 100kg/h

Extruder model: SJ65/30 and SJ45/30

Means of Transport: Ocean

Packing: EPE foam sheet or wooden ca...

Plastic Type: PP/PE

Shaft Design: Single

Power: 230kw

Screw design: single screw

1.Extruder model:SJ65/30 and SJ45/30
2.Screw diameter:65mm and 45mm
3.L/D:30:1
4.Main motor power:110kw and 45kw
5.Total power:230kw

1.Large calibre HDPE hollowness wall winding pipe application & features:

(1) The pipes we produced base on high density polythene (PE) as main material.

(2) The rectangle pipes are extruded by the first extruder and then enter into the twine form machine , at the same time , the second extruder spray the rubber strips and then squeeze to reunite it.

(3)This kind of pipes have many extremely excellent characteristics, such as , corrosion resistant light , easy to fix , long life time (50years),etc.

lt is widely used for sewer in super high-way, municipal construction , flats , athletic field, square , mine agriculture , and bridges etc. used to substitute for cement pipe, steel pipe and other plastic pipe

2.HDPE large calibre hollow wall winding pipe extrusion machine main technical parameter

Model	Pipe Diameter(mm)	Extruder				Max. Capacity	Dimension (LWH)
Model	Pipe Diameter(mm)	Model	L/D	Motor Power(KW)	Total power(kw)	Max. Capacity	Dimension (LWH)
JBD-CRG800	200-800	SJ6030 SJ5530	30:1 30:1	75 45	210	400	23.5103.2m
JBD-CRG1200	300-1200	SJ8030 SJ6530	30:1 30:1	110 75	320	550	24.0103.5m
JBD-CRG1600	800-1600	SJ10030 SJ6530	30:1 30:1	185 75	400	650	24.5115.0m
JBD-CRG2000	1200-2200	SJ10030 SJ6530	30:1 30:1	185 75	420	650	32.0166.0m
JBD-CRG3000	2200-3000	SJ12030 SJ8030	30:1 30:1	250 110	520	800	32.0188.0m
