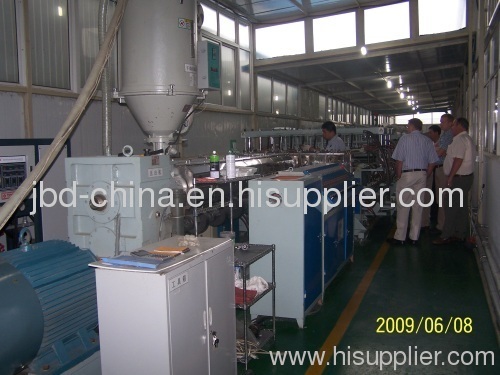

PP/PE hollow grid plate production line from China manufacturer

Price:	130000.0~160000.0 USD
Payment Terms:	T/T,WU
Place of Origin:	Shandong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: JBDPP-1500

Production Capacity: 60 sets per year

Delivery Date: 40 working days

Use: Others

Brand Name: JBD

Capacity: 200-300kg/h

Screw diameter: 120mm

Model: SJ120/30

Drawing speed: 0.4-4m/min

Board thickness: 2-12mm

Means of Transport: Ocean

Packing: wooden cases

Plastic Type: PP/PE

Shaft Design: Single

Power: 200KW

Screw design: Single screw

Screw origin: Zhoushan,Zhejiang

Molding blocks: 4

Board width: 800-1500mm

Total power: 150kw

1.Molding blocks:4 pcs
2.Drawing speed:0.4-4m/min
3.Model:SJ120/30
4.Capacity:200-300kg/h

Application & Features:

PP/PE hollow grid plate extrusion line is mainly used to produce hollow board.Raw material can be PP and PC.In addition,it can produce board with mixed and improved material.The board can be used for building decoration material,advertisement setting material,separated board for road noise and packing material,etc.The biggest usefulness of the PP hollow board is that it can be used for package instead of paperboard, and the package could be used more than 10 times.The features of the board as follow:Light weight,high strength,moisture proof,and against rotting,The width of the end product is at the range of 1220mm-2100mm,the thickness of the board product is at the range of 2mm-16mm.

Technique datas

Model	SJ150/2100	SJ120-1500
Material	PC	PP/PE
Product with(mm)	2100	1500
Product thickness(mm)	4-30	2-10
Output(kg/h)	300	250
Extruder specification	SJ120/30,SJ45/30	SJ120/30
Struture of adapter	A/B	A
Die specification	L=2200	L=1500
Line speed	0.2-4m/min	0.2-4m/min
Total power	200KW	150KW
