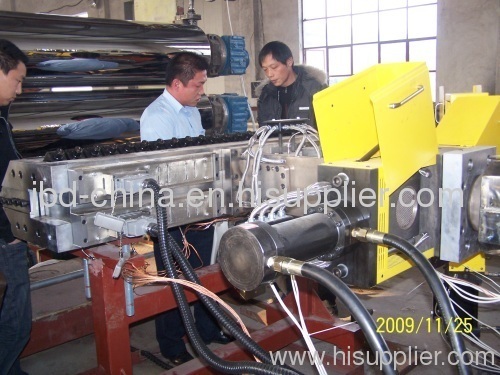

PP/PE/ABS/PS plate extrusion line from China manufacturer

Price:	130000.0~200000.0 USD
Payment Terms:	T/T,L/C
Place of Origin:	Shandong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: JBDABS-150

Production Capacity: 50 sets per year

Delivery Date: 50 working days

Power: 132kw

Line speed: 0.15-3m/min

Means of Transport: Ocean,Land

Packing: EPE film or wooden cases

Brand Name: JBD

Capacity: 300kg/h

1.Main motor power:132kw
2.Screw design:single screw
3.Size of roller:1800*490mm
4.Total power:250kw

PP/ABS plastic board extrusion line is capable of continuously producing single-layer or multi-layer PP PE ABS PMMA PC PS HIPS plate with the width less than 3000mm,and thickness between 1-30mm.

The products are widely used in fields of advertisment,refrigerator,air conditioner,and cinstruction,environmental protection,automotive trim,etc.

Main Technical Specification

Extruder	SJ-150X35 Single screw extruder
valid screw length(L/D)	35:1
screw rotating spee(r/min)	60-90(r/min)
main motor power	132kw
capacity	300kg/h
width of Calendar roller diameter	1800 * 490mm
Calendar roller turning speed	0.15-3r/min
drawing speed	0.15-3r/min
drawing power	4kw
cutting power	4kw
dverall dimension of the line	45mX3.5mX4.25m
