Introduction

Board thickness:1mm-30mm
Board width:500mm-1800mm
Single screw extruder
Max.capacity:400kg/h

Process flow:

Single screw extruder→hydraulic filter→mold→three-roller calender→cooling bracket→edge cutting device→haul-off→transversal cutter→stacker(three roller cooling device,transmission device,length measuring device unit)

Description:

1,The screw is designed of special mixing function and high plasticization capacity.

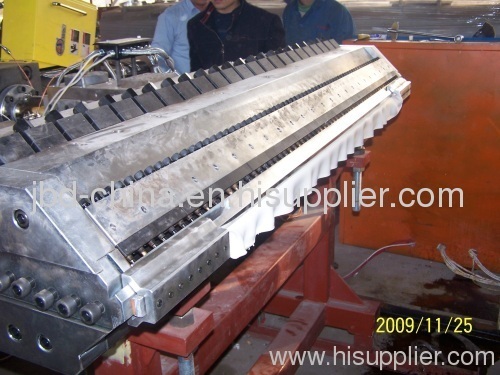

2,The special designed T-type mold ensures a precise control to the thickness of the board.
3,The accurate temperature control (±1) can precisely control the plasticization process, thickness and smoothness of board.
4,The three-roller calendar adopts horizontal, vertical or 45°tilt type installation, with up-down lifting mode.
5.The thickness of board is controlled by screw and pressing roller in two directions.
6.The separate roller temperature control system can precisely control the pressing roller temperature to ensure a even thickness.
7.Cutting machine can cut the sheet with accurate length and quantity.
8.The winding device uses big torque motor, can freely regulate the winding speed and tension.
9.The automatic meter countering device can pre-set the length of the product
