PP/PE/ABS thick board production line from China manufacturer

Price:	130000.0~260000.0 USD
Payment Terms:	T/T,WU
Place of Origin:	Shandong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: JBD-HB150

Production Capacity: 50 sets per year

Delivery Date: 50 working days

Brand Name: JBD

Capacity: 300-500kg/h

Means of Transport: Ocean

Packing: wooden cases

Use: Others

Power: 180kw

Line speed: 0.15-3 m/min

1.Screw design:single screw
2.L/D:35:1
3.Screw rotating speed:73-90r/min
4.Line speed:0.15-3m/min

JBD is famous for its PP/PE/ABS thick board production line and is a leading manufacturer of high performance PP PE board and plate extrusion line all over china. we have exported tens of the lines to other counties worldwide

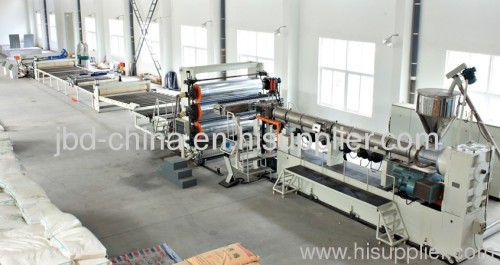

PP/PE/ABS thick board extrusion line newly developed on absorbing advanced technology with own know how, is mainly used in manufacturing PE and PP thick sheet, panel or board, thickness ranges from 2 up to 40mm and the board width from 750 up to 1800mm.

Main components of the extrusion line are all from famous brand worldwide, combining with our own know how and long-term experiences, making the line perfect and reliable. Products manufactured by this production line are characterized by smooth surface, high dimension accuracy, excellent corrosion resistance and strong insurability.

Technique datas

Main machine	SJ-150×35 Single Screw Extruder	SJ-170×35 Single Screw Extruder
Screw L/D ratio (L/D)	35:1	35:1
Screw rotation speed (r/min)	73-90	73-90
Power of main motor (kw)	185	280
Production capacity (kg/h)	300-500	400-800
Mirror calendar shaft width × diameter mm	1800×Φ500	1800×Φ600
Mirror calendar shaft rotation speed r/min	0.15-3	0.15-3
Haul-off speed r/min	0.15-3	0.15-3
Haul off power kw	4	4
Cutting power kw	4	4
Outline dimension (L× W ×H) m	45×3.5×4.25	55×4×4.5
