PVC door and windowsill board extrusion line from China manufacturer

PVC door and windowsill board extrusion line

Price:	1.0~160000.0 USD
Payment Terms:	T/T,WU
Place of Origin:	Shandong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: JBDCT-80

Production Capacity: 30 sets per year

Delivery Date: 60 working days

Use: Others

Brand Name: JBD

Capacity: 500kg/h

Screw quantity: 2

Total power: 280kw

Consumed air: 0.4m3/min

Water cycle: 0.3m3/min

Means of Transport: Ocean

Packing: wooden cases

Plastic Type: PVC

Shaft Design: Double

Power: AC380V±10%,50HZ

Screw design: Double screw

Main motor power: 55kw

Line speed: 1-4m/min

Atmospheric pressure: 0.6mpa

PVC(WPC) windowsill and door board extrusion line
1.Motor power:55kw
2.Total power:280kw
3.Atmospheric pressure:0.6Mpa
4.Water cycle:0.3m3/h

Characteristics and performance of PVC(WPC) windowsill and door board extrusion line

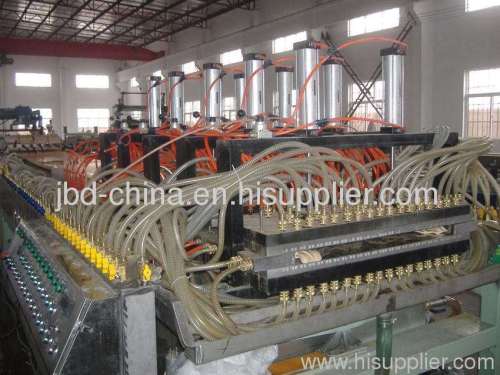

PVC door and windowsill board extrusion line consists of conical twin screws extruder, vacuum sizing case, haul-off unit, traveling-cut unit, unload rollers etc. Vacuum sizing case includes water cooling system and drawing vacuum unit. Haul-off unit applies import converter to control pulling speed, stable pulling speed and large force. Cutting unit adopts traveling cut and excellent saw blade, high precision and reliable. Unload rollers protect the surface of plate and door effectively. The production line could be controlled by computer system or electric controlling system imported.
Application
Special for producing PVC,PVC plastic wood hollow door, PVC panel,windowsill board and free foam board etc.
Range of work
Width: 600-1200mm.
Flow Process

Photos of PVC(wpc) door and windowsill board
