PVC door and windowsill board production line from China manufacturer

PVC door and windowsill board production line

Price:	1.0~160000.0 USD
Payment Terms:	T/T,WU
Place of Origin:	Shandong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: JBDCT-80

Production Capacity: 30 sets per year

Delivery Date: 60 working days

Use: Others

Brand Name: JBD

Capacity: 500kg/h

Screw quantity: 2

Total power: 280kw

Consumed air: 0.4m3/min

Water cycle: 0.3m3/min

Means of Transport: Ocean

Packing: wooden cases

Plastic Type: PVC

Shaft Design: Double

Power: AC380V±10%,50HZ

Screw design: Double screw

Main motor power: 55kw

Line speed: 1-4m/min

Atmospheric pressure: 0.6mpa

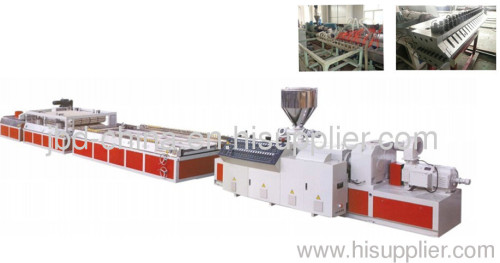

PVC(WPC) windowsill and door board production line
1.Capacity:500kg/h
2.Total power:280kw
3.Atmospheric pressure:0.6Mpa
4.Water cycle:0.3m3/h

PVC windowsill board extrusion line has a compact structure, good plastification, high output, and a long using life and so on. The production line using specially designed tapered SJSZ80 conical twin screw extruder or SJSZ92 conical twin-screw extruder, adopting AC variable frequency drive, imported instrumentation and PT100 platinum resistance temperature measurement devices with a wide range of speed control, temperature control and high precision, convenient operation, etc.
The calibrating table is equipped with large forced cooling device to ensure calibrating effect of the door board.

Hauling machine using imported reducer and inverter, with reasonable structure, traction, and traction and stability and other advantages.
Cutting machine with reliable action, high cutting accuracy.
Stacker with a pusher movable trolley and a special protective layer of rubber with a non-material injury, easy oerpating and other advantages

Host machine extrusion →Vacuum calibrating →Haul off →Cutting →collecting →Convey →hot stampiing

Photos of PVC door board and windowsill board
