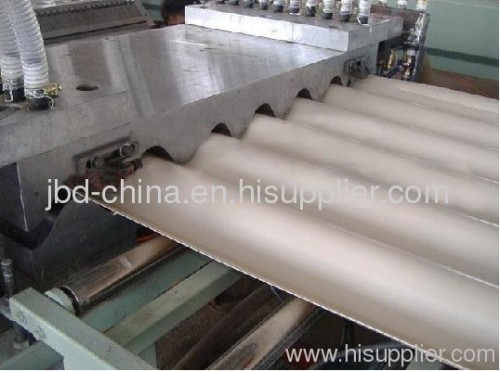

PVC corrugated roofing sheet extrusion line from China manufacturer

PVC corrugated roofing sheet extrusion line

Price:	1.0~160000.0 USD
Payment Terms:	T/T,WU
Place of Origin:	Shandong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: JBD-BLW65

Production Capacity: 40 sets per year

Delivery Date: 40 working days

Use: Others

Brand Name: JBD

Capacity: 150-200kg/h

Screw diameter: 65mm

Die type: T type

Haul off power: 2.2kw

Means of Transport: Ocean

Packing: wooden cases

Plastic Type: PVC

Shaft Design: Double

Power: 37kw

Screw design: double screw

L/D: 22:1

Line speed: 0.5-5m/min

Working air pressure: 0.4-0.6Mpa

PVC corrugated roofing sheet extrusion line
1.Die type:T type
2.Screw diameter:65mm
3.Capacity:150-200kg/h
4.Line speed:0.5-5m/min

SJW series plastic roofing sheet extrusion line matched with relevant extrusion mould, can produce any kind of roofing sheet continuously, the line consists of extruder,calibration unit,haul-off unit,cutting device,stacking device, etc.

Advantages:

1) Equipped with coat hanger form flat die and a pneumatic shaping mould, this line has a more stable shaping process and more easily adjustable for the thickness control.

2) Using rubber hauling roller matched with the waveform of sheets, it provides more smooth traction.

3) Its automatic angular cutter ensures the cutting section tidy. It can be cut by metering length.

The model of main machine					SJSZ-65
Die shape	L=1300mm coat hanger style flat plate die			cooling die dimensions			1300mm* 600mm	Hauling power	2.2kw(frequency conversion)
Forming unit	roller type			cooling means			Water-cooling	Cutting means	shear style(pneumatic)
Big wave	R=15 h=16.5	63mm wave distance	Hauling velocity			0.5-5m/min		Cutting follow distance	500mm
Small wave	R=9 h=8	36mm wave distance	Hauling roller length			1300mm		Work pressure	0.4-0.6MPa
