PVC trapezia-shape roof tile production line from China manufacturer

PVC trapezia-shape roof tile production line

Price:	1.0~160000.0 USD
Payment Terms:	T/T,WU
Place of Origin:	Shandong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: JBD-BLW65

Production Capacity: 40 sets per year

Delivery Date: 40 working days

Use: Others

Brand Name: JBD

Capacity: 150-200kg/h

Screw diameter: 65mm

Die type: T type

Haul off power: 2.2kw

Means of Transport: Ocean

Packing: wooden cases

Plastic Type: PVC

Shaft Design: Double

Power: 37kw

Screw design: double screw

L/D: 22:1

Line speed: 0.5-5m/min

Working air pressure: 0.4-0.6Mpa

PVC trapezia-shape roof tile production line
1.Die type:T type
2.Screw diameter:65mm
3.Capacity:150-200kg/h
4.Line speed:0.5-5m/min

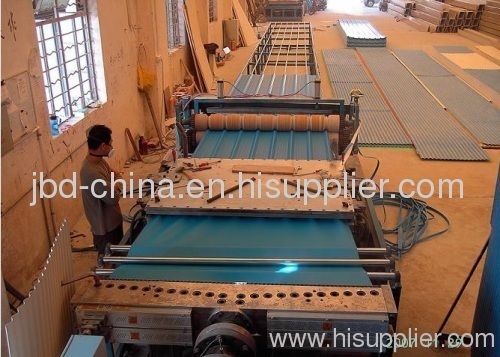

PVC trapezia-shape roof tile production line is specially designed for producing the flame-retardant plastic waved board , mainly used in construction Industry . this production line is composed of conical twin screw extruder , forming machine , hauling machine, cutting machine etc. the whole production line design reasonable , plasticize well & steady , high automatic degree , we can design as customize depend on the different requirements of customers , such as different width of the waved board , different thickness requirement etc.

The model of main machine		SJSZ-65X22
The die shape	Coat hanger style flat plate die	Cooling die Dimensions	1000mm 540mm	Hauling power	2.2kw
The forming unit		The cooling Means	Water-cooling	Cutting means	Shear style
Big wave	Wave distance	Hauling velocity	0.5-5m/min	Cutting follow distance	500mm
Small wave	Wave distance	Hauling roller length	1000mm	Work pressure	0.4-0.6MP
