PVC plasticized -tendon sprial pipe making machine from China manufacturer

PVC plasticized -tendon sprial pipe making machine

Price:	20000.0~30000.0 USD
Payment Terms:	T/T,WU
Place of Origin:	Shandong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: JBD-GQG45

Production Capacity: 80 sets per year

Delivery Date: 30 working days

Use: Others

Brand Name: JBD

Capacity: 20-40kg/h

Pipe range: 10-50mm

Means of Transport: Ocean

Packing: wooden cases

Plastic Type: PVC

Shaft Design: Single

Power: 31kw

Extruder: SJ45/28

1.Model:JBD-GQG45
2.Extruder:SJ45/28
3.Pipe range:25-50mm
4.Total power:31kw

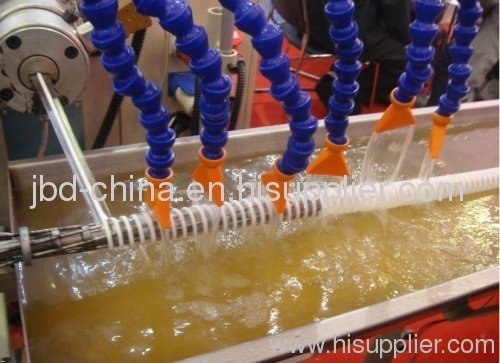

PVC sprial reinforced soft pipe making machine main features:

1.Special designed high efficiency extruder with high quality reduction gearboxes and converter motors, high output capacity;

2.High precise co-extrusion die head, well designed spiral forming machine, effctive water cooling system, special made spiral haul-off machine, advanced horizontal type coiler help making perfect spiral reinforced hose;

3.Whole line with high degree of automation, saving labour resource;

4.Well known brand electrical components, enhanced line stability;

5.High quality steel materials, strict producing process make high quality line

6.New energy saving designs, lowered energy consumption

Technique datas

Model/Spec.	Diameter range (mm)	Extruder model	Line speed (m/min)	Max. Capacity (kg/h)	Installed power (kw)
JBD-GQG45	13-50	SJ45/28	1-12m/min	40	31
JBD-GQG65	64-150	SJ65/28	1-10 m/min	80	60
