PVC conduit pipe production line from China manufacturer

Product Detail

Model No.: JBD-PVCSG63

Production Capacity: 50 sets per year

Delivery Date: 35 working days

Use: Others

Brand Name: JBD

Capacity: 200kg/h

extruder: SJSZ65/132

Means of Transport: Ocean

Packing: EPE film or wooden cases

Plastic Type: PVC

Shaft Design: Double

Power: 80kw

pipe diameter: 16-63mm

1.Line speed:1-6m/min
2.width of production line:25m
3.L/D:25:1
4.Length of tank:6m

(1) The main extruder is SJSZ51/105 or SJSZ65/132 conical double-screw extruder

(2) It avoids a waste condition when one tube is adjusted and the other one is affected.

(3) The diameter of the extruded pipe is from Φ16-Φ63. It can fully use the extruding capacity
of the extruder.

(4) Even if it produces small diameter pipe, it can get great output, too.

Technqiue datas

Item	Machine	Quantity
1	Spring loader	1 set
2	Conical Twin-Screw Extruder	1 set

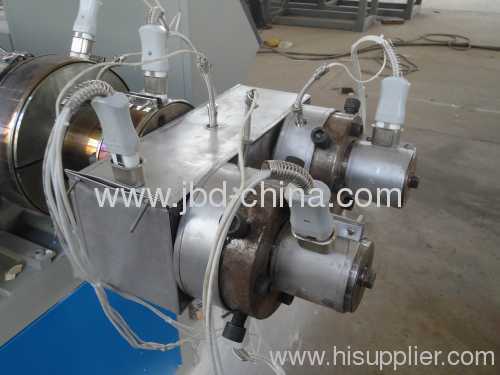

3	Double-extrusion die and head and calibrators	complete set
4	Double Vacuum Calibration tank	1 set
5	Printer	2 sets
6	Double Hauling & Cutting Machine	1 set
7	Double Pipe stacker	1 set
