PVC spiral steel wire reinforced hose extrusion line from China manufacturer

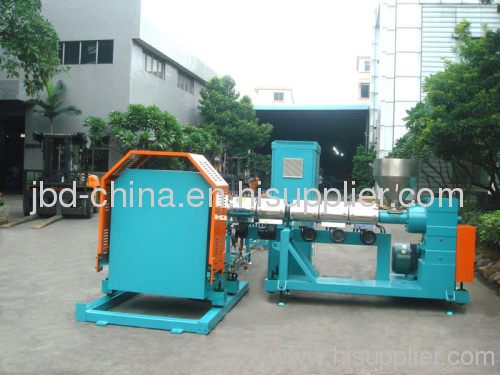

PVC spiral steel wire reinforced hose extrusion line

Price:	24000.0~26000.0 USD
Payment Terms:	T/T,L/C
Place of Origin:	Shandong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: JBD-GZG50

Production Capacity: 80 sets per year

Delivery Date: 30 working days

Use: Others

Brand Name: JBD

Capacity: 30-60kg/h

Line length: 16m

Means of Transport: Ocean

Packing: EPE film or wooden cases

Plastic Type: PVC

Shaft Design: Single

Power: 40kw

Screw diameter: 65mm

Pipe diameter: 20-50mm

1.Total power:40kw
2.Main motor power:22kw
3.Output:30-60kg/h
4.L/D:28:1

PVC spiral steel wire reinforced hose extrusion line is used to produce PVC steel wire reinforced transparent pipe .The pipe Wall is made of transparent PVC plastic .With in the pipe wall ,there are spiral steel wire This kind of pipe has the advantage of extrusion resistance corrosion resistance , static electricity resistance ,anti-high pressure and good running .It is suitable for the conveying high pressure or combustible gas and liquid ,and the exhaust of the liquid sludge .It is mainly used in such fields as machinery,chemical industry , building ,irrigation and vacuum pump ,etc .

Technical Parameters

Model	PVC-65	PVC-90	PVC-120
ScrewDiameter(mm)	Φ65	Φ90	Φ120
L/D	28:1	28:1	28:1
Pipe Range(mm)	20-50	50-75	100-150
Capacity(kg/h)	40-80	100-130	120-150
MotorPower (k w )	22	45	75
TotalPower (k w )	40	50	75
LineLength(m)	16	18	22
