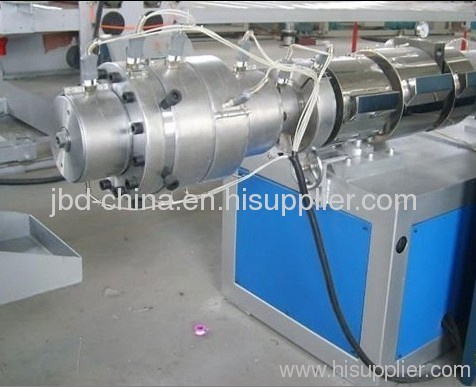

PVC plastic pipe production line from China manufacturer

Price:	45000.0~60000.0 USD
Payment Terms:	T/T,L/C,WU
Place of Origin:	Shandong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: JBD-PVCG160

Production Capacity: 60 sets per year

Delivery Date: 35 working days

Use: Others

Brand Name: JBD

Capacity: 200kg/h

extruder: SJSZ65/132

Means of Transport: Ocean

Packing: EPE film or wooden bag

Plastic Type: PVC

Shaft Design: Double

Power: 85kw

pipe diameter: 50-160mm

1.Screw diameter:65mm
2.Width of production line:2.5m
3.Diameter:50-160mm
4.Length of tank:6m

PVC plastic pipe production line is composed of conical twin screw extruder, vacuum shaping box, spraying cooling box, drawer, cutter, pilling frame, and coordinated with different specification of moulds. It can be widely used in pressured water-supply, draining, chemical antisepsis, wire and other specification of PVC pipe materials.

Technique details

Pipe range	20-63mm single	20-63mm dual	75-160mm	110-315mm	315-630mm
Extruder	SJZ51/105	SJZ65/132	SJZ80/156	SJZ80/156	SJZ92/188
Extruder power	18.5kw	37kw	37kw	55kw	110kw
Extrusion capacity	120kg/h	250kg/h	250kg/h	360kg/h	800kg/h
Max. Production speed	12m/min	10m/min	6 m/min	3 m/min	1.2m/min
