PVC plasticized -tendon sprial hose production line from China manufacturer

PVC plasticized -tendon sprial hose production line

Price:	20000.0~30000.0 USD
Payment Terms:	T/T,WU
Place of Origin:	Shandong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: JBD-GQC50

Production Capacity: 80 sets per year

Delivery Date: 30 working days

Use: Others

Brand Name: JBD

Capacity: 20-40kg/h

Pipe range: 10-50mm

Means of Transport: Ocean

Packing: wooden cases

Plastic Type: PVC

Shaft Design: Single

Power: 31kw

Extruder: SJ45/28

1.Model:JBD-GQG50
2.Extruder:SJ45/28
3.Capacity:20-40kg/h
4.Motor power:11kw
5.Line speed:1-12m/min

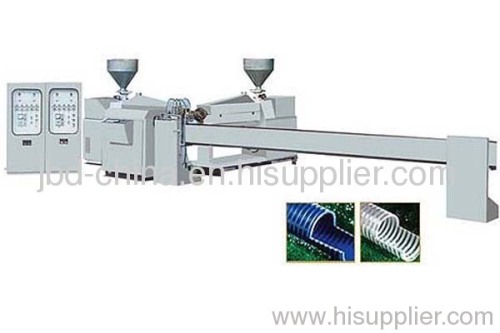

PVC plasticized -tendon sprial hose production line is designed to produce PVC spiral reinforced hose, it consists two extruders, forming unit, bath, winder, the wall of which is soft PVC and rigid PVC helix as reinforced, featuring extrusion resistance, corrosion resistance, regative pressure resistance, anti-bending, good negotiability, so it is suitable to conveying gas, liquid and powder, widely used in industry, agriculture, construction and irrigation etc.

Model/Spec.	Diameter range (mm)	Extruder model	Line speed (m/min)	Max. Capacity (kg/h)	Installed power (KW)
JBD-GQG45	10-50	LSJ45/28	1-12m/min	40	31
JBD-GQG65	64-150	LSJ65/28	1-10 m/min	80	60
