HDPE double wall corrugated pipe production line

Price: 16000.0~600000.0 USD
Payment Terms: T/T,L/C,WU
Place of Origin: Shandong, China (Mainland)
inquire
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: JBD-BWG400
Production Capacity: 50 sets per year
Delivery Date: 60 working days
Power: 220kw
Main extruder: SJ90/30 or SJ120/30
Means of Transport: Ocean,Land
Packing: EPE film or wooden cases
Brand Name: JBD
Capacity: 800kg/h

1.Material:PP,HDPE
2.Line speed:0.5-3m/min
3.Total power:220kw
4.Compressed air:6Bar

HDPE double wall corrugated pipe extrusion line adopts complicated mechanic head ,double combiated machine to production to provide material and spiral writhe .The con-stitution is nice and design is special .It can guerantee the high quality of the product.The machine is controlled by the advanced PLC computer ,easy operation and steadiness.

HDPE double wall corrugated pipe extrusion line is configured with single screw extruder and grooved feed barrel which ensures extruding in high efficiency. Adopts vertical type forming mould with strong cooling ability, ensures stable and fast lineal speed, forms the Socket on line.

Technqiue datas
Model
JBD-DBG90
JBD-DBG120
Raw material
HDPE
HDPE
Extruder
Φ90/25
Φ120/25
Range of pipe dia.
mm
Φ65-115
Φ115-175
Water consumption
L/H
4000
5000
Water pressure
Mpa
0.4-0.6
0.4-0.6
Number of mould block
pair
50
60
Whole length of mould block
mm
5180
6216
Move speed of mould block
m/min
1-12
1-8
Dimensions(L×W×H) (approx)
m
18×1.35×1.7
21×1.55×2.2
Total weight(approx)
T
6

Photos of HDPE double wall corrugated pipe making line
1.HDPEdouble wall corrugated pipe extruder

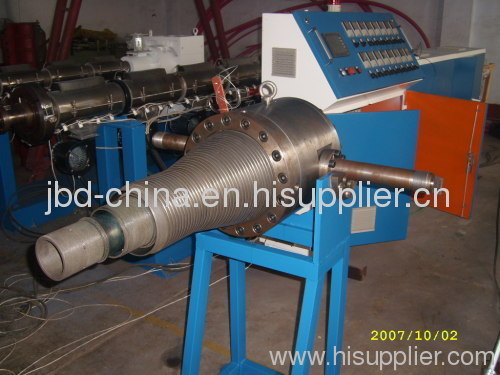

2.HDPE double wall corrugated pipe mold


3.HDPE double wall corrugated pipe corrugator

4.HDPE double wall corrugated pipe cutter
