single wall corrugated pipe extrusion line from China manufacturer

single wall corrugated pipe extrusion line

Price:	20000.0~30000.0 USD
Payment Terms:	T/T,L/C
Place of Origin:	Shandong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: JBD-DBG63

Production Capacity: 80 sets per year

Delivery Date: 20 working days

Power: 45kw

Means of Transport: Ocean,Land

Packing: EPE film or wooden cases

Brand Name: JBD

Capacity: 80kg/h

1.Material of screw:38CrMoAlA
2.Heating power:16kw
3.Main motor power:22kw
4.Total power:45kw

Extruder: It has high speed high efficiency screw, hard gear surface, FUJI invertor. This structure assures the material evenly heating, good plasticization and the extruding speed and efficiency.

Corrugator:Close structure. Mold blocks through the gear transmission. Mold plate has water flowing to get cooling efficiency. The pipe cooling type is wind. This structure ensures high speed production and cooling.

single wall corrugated pipe extrusion line can produce inner and outer layer smooth and corrugation uniformity pipe one time matching the corresponding molds.

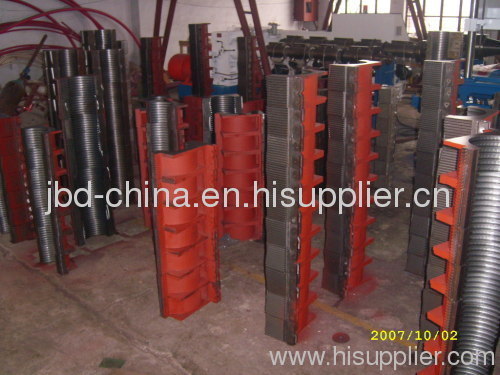

Mold block:The design of structure is reasonable, wind cooling and replacement of the module is convenient and reliable.

Winding machine:Torque motor, single/double station winder.

Technical parameter

Model number	JBD-DBG32	JBD-DBG63
Pipe diameter	8-32mm	32-63mm
Max output	40kg/h	80kg/h
Max Production rate	12m/min	8m/min
Extruder model	SJ-45/30	SJ-65/30
Installed power	25kw	45kw
Center height	1000mm	1000mm
Installation area	6.5x1.5x1.5m	8.0x2.0x2.5m
