single wall corrugated pipe production line from China manufacturer

single wall corrugated pipe production line

Price:	20000.0~30000.0 USD
Payment Terms:	T/T,L/C
Place of Origin:	Shandong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: JBD-DBG63

Production Capacity: 80 sets per year

Delivery Date: 20 working days

Power: 60kw

Means of Transport: Ocean,Land

Packing: EPE film or wooden cases

Brand Name: JBD

Capacity: 80kg/h

1.Total power:60kw
2.Center height:1000mm
3.Main motor power:18.5kw
4.Material of screw:38CrMoAlA

We designed and developed Single wall corrugated pipe production line by absorbing advanced technology from plastic machinery industry of foreign countries.which can be used for producing corrugated pipes of PE,PP,PVC,EVA,PA etc.

Plastic single-wall corrugated pipes produced by Single wall corrugated pipe production line have many features such as high intensity, good flexibility,high temperature resistance, resistant to corrosion and abrasion, etc. They has large market which are widely used in the fields of auto wire, electric thread-passing pipes,protective pipes of lamps and lanterns wire, circuit of machine tool, tubes of air conditioner and washing machine and so on.

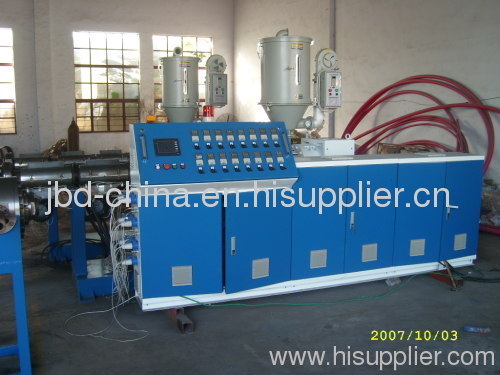

Extruder: the extruder has high speed high efficiency screw, hard gear surface, FUJI convertor. This structure guarantee the extruding speed and efficiency,the material evenly heating and good plasticization.
Mold block: the design of structure is reasonable, wind cooling and replacement of the module is convenient and reliable
Corrugator: Horizontal structure with 40 Cr special die head.Mold blocks Through the gear transmission, Mold plate has water flowing to get cooling efficiency. The pipe cooling type is wind. This structure ensures High speed production and cooling. It can produce inner and outer layer smooth and corrugation uniformity pipe one time matching the corresponding molds.

Winging machine: moment motor, single/double station winder.

Main technical parameter:

Diameter Scope	4.5-9 mm	9-32 mm	16-63 mm
Main Extruder	SJ-30	SJ-45	SJ-65
L/D	30:1	28:1	30:1
Output kg/h (kg/h)	10	40	80
Main Motor (KW)	2.2	11	18.5
Corrugator Power (KW)	1.1	1.5	2.2
Mould Block Pairs	40	44	44
Cooling Type	Water and air cooling
Line Speed (m/min)	8-16	6-12	6-12
Counting Type	Sensing counting
Winding Type	Automatic/Manual
